Products Description

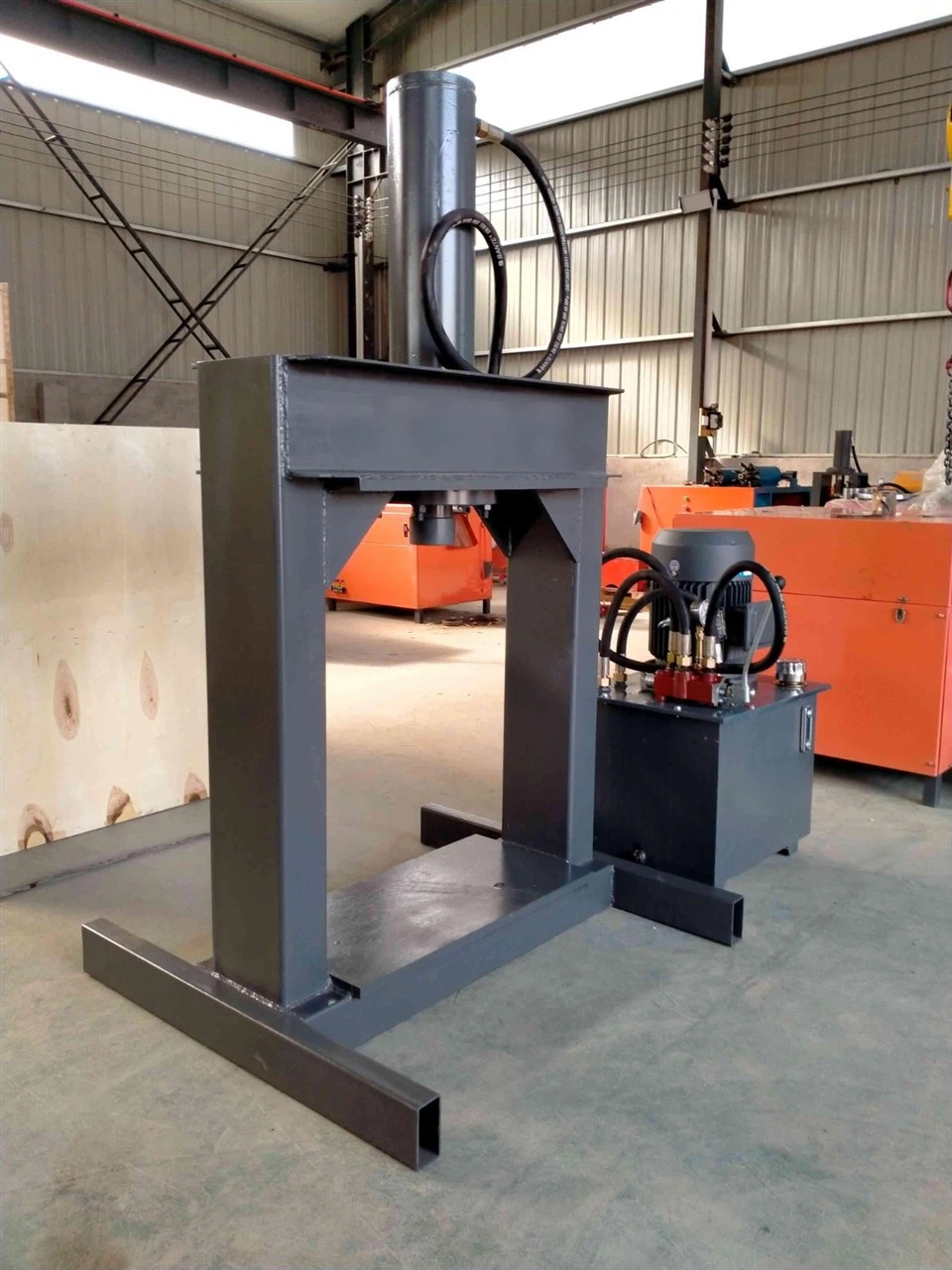

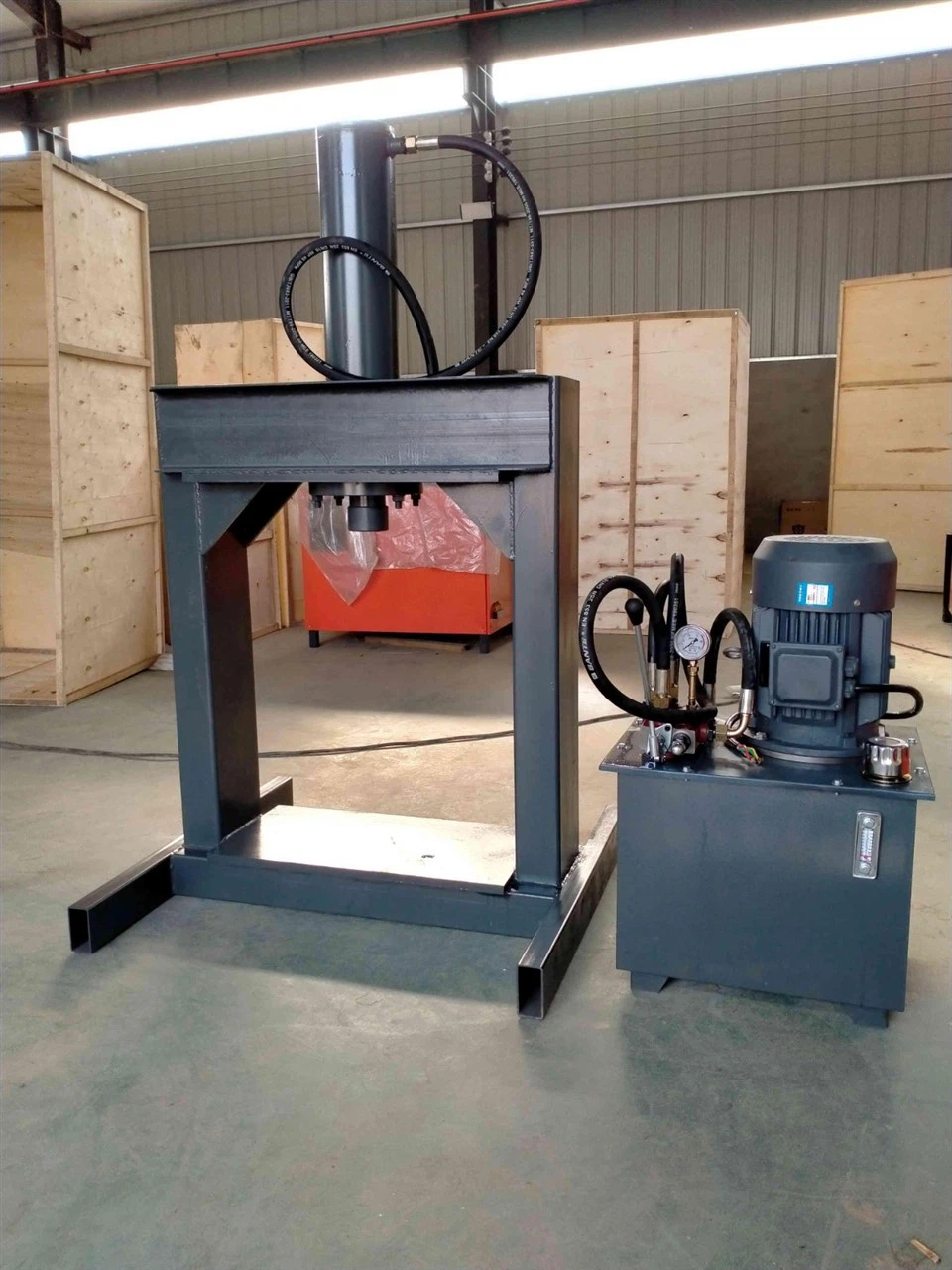

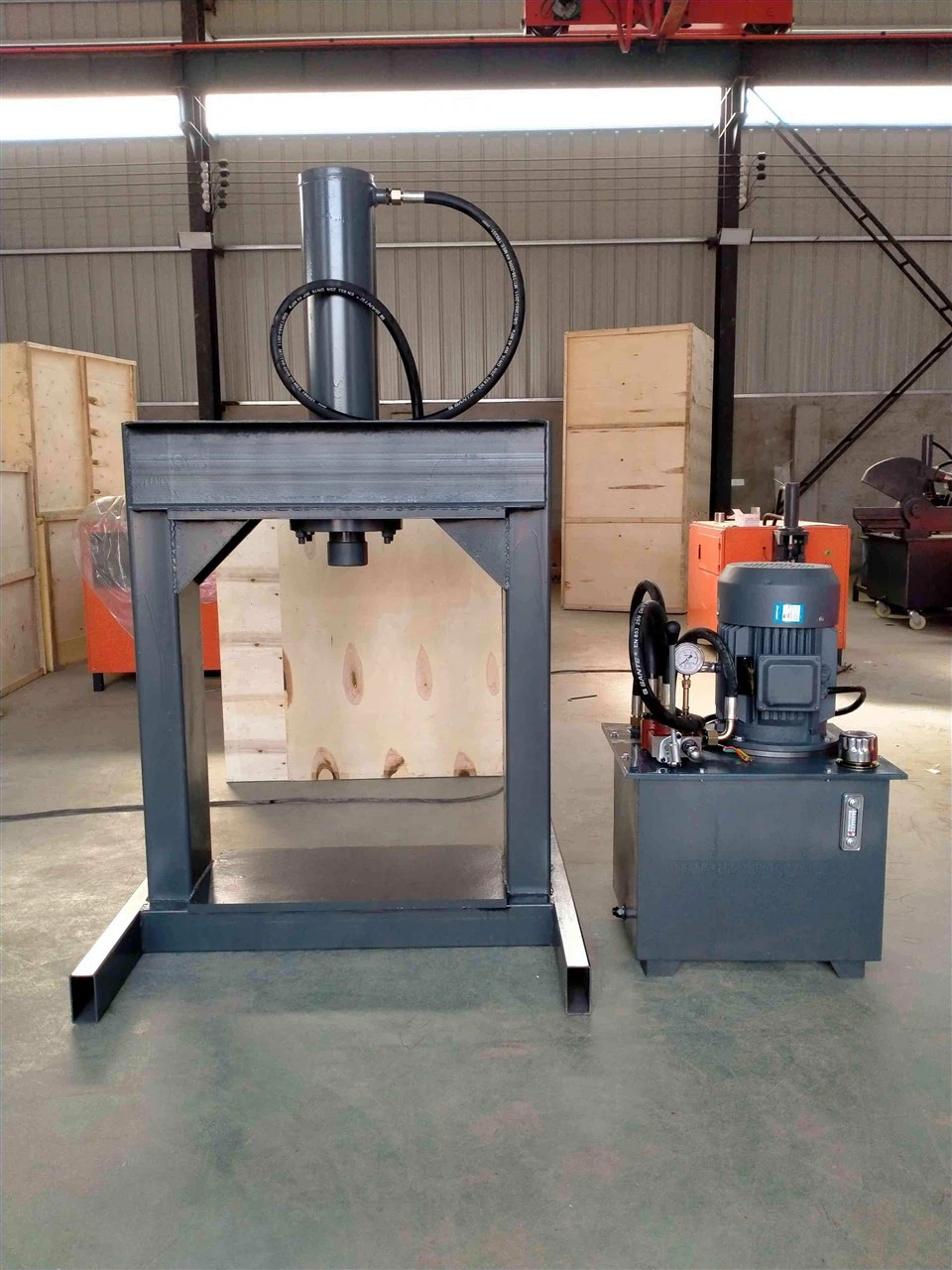

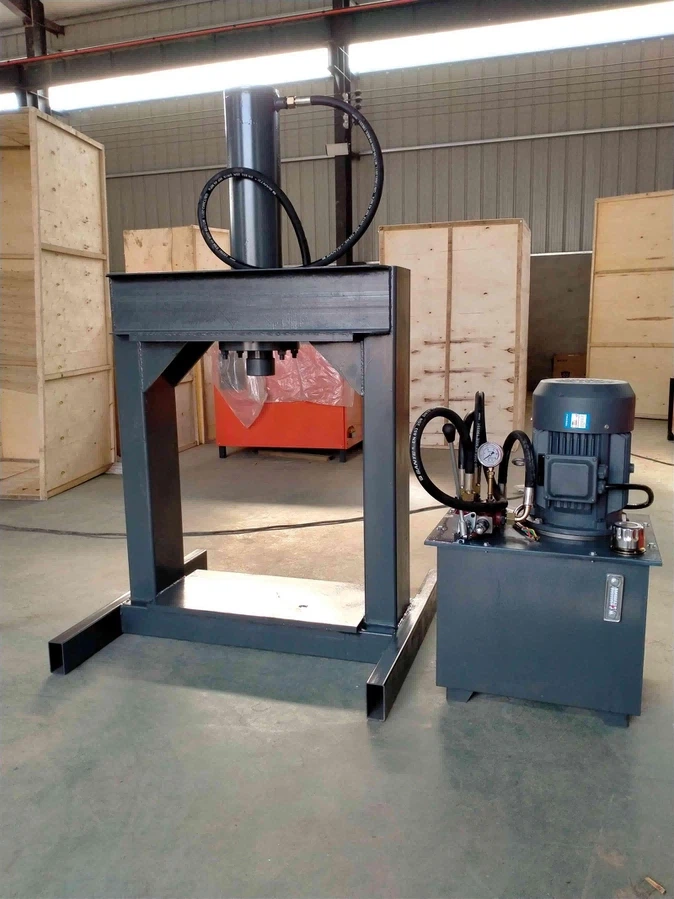

The E-MR-P60 motor recycling machine (new-generation stator separator) is RJ Company's best-selling model. Its core consists of a hydraulic press combined with a drive pump, specifically designed to cut and strip copper windings from motor stators and rotors. It also offers multiple functions, including crushing aluminum parts, dismantling housings, and removing pulleys and bearings. The equipment features an all-steel construction and is equipped with a professional hydraulic lifting and disassembly system. It allows for flexible configuration of different specifications of press heads and bases according to the pressure requirements of the workpiece, making it compatible with various types of motors. It efficiently separates metal resources during the motor recycling process and serves as a core supporting device in the field of motor recycling and regeneration.
Machine Parameters
| Model | E-MR-P60 |
| Power | 7.5kw |
| The host size | 100*90*166cm |
| The host weight | 320kg |
| Pump size | 56*46*90cm |
| Pump weight | 90kg |
| Oil tank volumn | Plywood case |
Product Advantages
1. Robust Construction and Stable Operation
Constructed with an all-steel frame, it offers high strength and impact resistance. The precision-engineered hydraulic system ensures stable performance with a low failure rate, enabling it to withstand long-term high-intensity operations and guaranteeing continuous production.
2. Flexible Operation and Strong Adaptability
The press head and base can be flexibly configured without the need for pre-sorting or pre-processing. It is compatible with various types of motors, offering high versatility and flexible operation.
3. Comprehensive Functionality and Outstanding Efficiency
A single machine integrates multiple core functions. With ample hydraulic power, it achieves high disassembly efficiency. There is no need to purchase additional equipment, significantly reducing labor and costs.

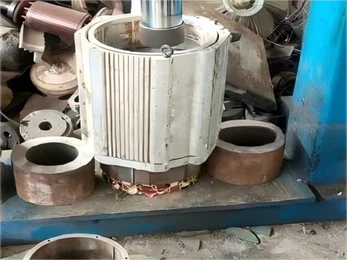

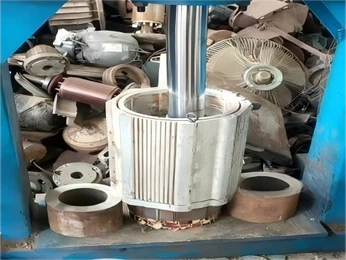

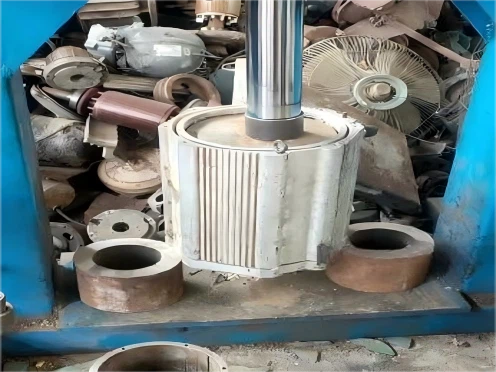

Processing Display
Applications
1. Scrap Motor Recycling Industry
Suitable for various scrap motor recycling stations and scrap material processing centers, this equipment enables the centralized disassembly and stripping of copper windings from all types of recycled scrap motors. It facilitates the sorted recovery of metal resources such as copper, iron, and aluminum, thereby increasing the value of the recycled materials.
2. Automotive Dismantling Sector
Suitable for automotive dismantling plants and end-of-life vehicle processing centers, this equipment is used to dismantle automotive starter motors and alternators. It can also crush aluminum automotive parts and remove pulleys and bearings, facilitating the resource recovery of scrap automotive components.
3. Home Appliance Dismantling Sector
Suitable for home appliance dismantling enterprises, this system efficiently dismantles motors from discarded refrigerators, air conditioners, washing machines, and other household appliances, strips copper coils, and disassembles appliance casings, promoting the recycling of waste appliance motors.
4. Industrial and Power Tool Recycling Sector
Suitable for industrial waste equipment processing facilities and power tool recycling centers, this system can dismantle industrial motors, power tool motors, and electric vehicle motors, strip copper windings, and disassemble related components, thereby facilitating the resource recovery of industrial waste motors.
Our Advantages Over Competitors
1. Superior Brand and Quality
As a best-selling model from RJ, this product leverages our mature R&D and manufacturing expertise along with strict quality control. Its all-steel construction and core hydraulic system offer stability far surpassing that of similar products, resulting in a low failure rate and longer service life.
2. Superior Adaptability and Flexibility
Most competitors offer fixed specifications, are compatible with only a single motor type, and require pre-processing; this product allows for flexible configuration of the press head base, is compatible with all motor types, and requires no pre-processing, offering greater flexibility.
3. More Comprehensive Features and Better Value for Money
Competitors' products typically only strip copper coils and require additional equipment; this product integrates multiple functions into a single machine, saving costs and improving efficiency, offering far better value for money than similar products.
4. More Mature Technology and More Reliable After-Sales Support
Leveraging RJ Company's mature hydraulic technology, the machine operates more stably and efficiently. With a comprehensive after-sales system and prompt fault resolution, it minimizes downtime losses.
Certification
FAQ
Q: Troubleshooting Difficulties in Starting or Failure to Start an Electric Motor
A: 1.Tool Shaft Jammed: This is the most direct cause. Foreign objects (such as metal fragments or excessively hard materials) jam the tool shaft, resulting in excessive load. 2.Low Voltage: Insufficient starting torque. 3. Starter Malfunction: Poor contact in the contactor or failure of the star-delta starter.
Q: How to resolve significant current fluctuations or frequent tripping during operation
A: 1. Uneven feeding: Excessive material input at once, or significant variations in material properties (alternating between soft and hard). 2. Severe blade wear or damage: Dull blades require greater cutting force, leading to increased current draw. 3. V-belt tension too tight or too loose: Excessive tension increases load, while insufficient tension causes slippage and power transmission loss. 4. Protection device setpoint too low: Thermal relay current setting falls below actual operational requirements.
Q: How to Resolve Motor Reversal Issues
A: Simply swap any two power supply leads. However, note that for dual-shaft crushers, ensure both cutting shafts rotate inward toward each other. Otherwise, material will be pushed out instead of drawn in for crushing. After swapping leads, perform a test run to confirm correct rotation direction.
