Xi'an RJ Mechanical Equipment Co., Ltd. is one of the leading manufacturers and suppliers of Integrated Motor Separator in China. Welcome to buy CE approved Integrated Motor Separator made in China here from our factory. Quality products and reasonable price are available.
Products Description

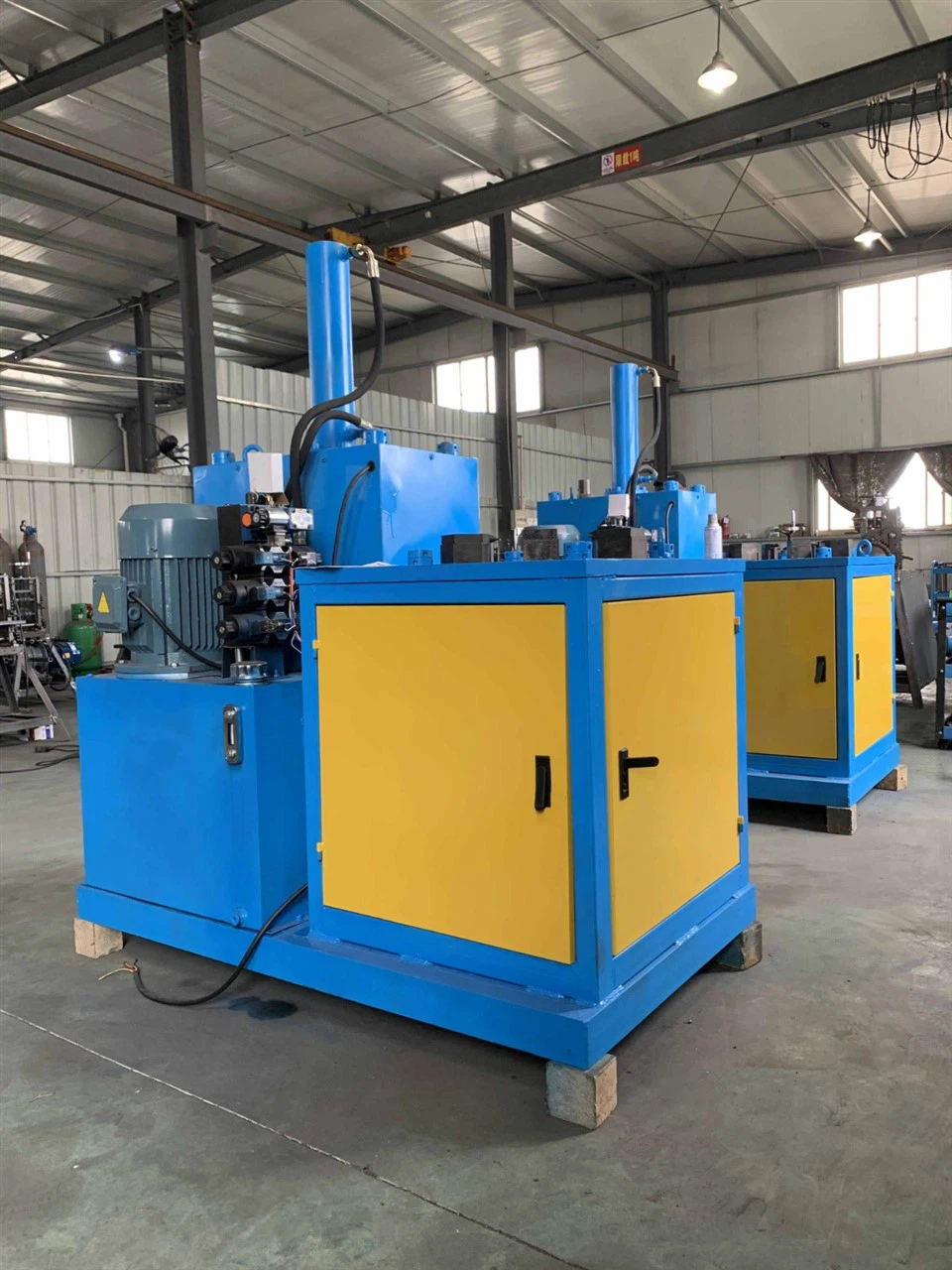

The E-MR-T integrated motor separator is an electric, automated copper and metal motor recycling machine independently developed by RJ Company. Utilizing a hydraulic system, it combines motor cutting and copper coil separation into a single unit. Through a two-step process-stator cutting and copper coil separation-it efficiently dismantles scrap motors and recovers copper resources. With its user-friendly operation and outstanding efficiency, it has gained widespread popularity in the European market and stands as a highly efficient integrated solution in the field of motor recycling.
Machine Parameters
| Model | E-MR-T |
| Stator Range | 8~30cm |
| Power | 4KW |
| Output | 30-40PCS/h |
| Net Weight | 1100KG |
| Measurement (L*W*H) | 126*71*186cm |
Waste Motor Stator Cutting Pulling Machine Advantages:
1. The E-MR-T features a rational structure and aesthetically pleasing appearance.
2. Utilizes a hydraulic system delivering high torque and stable performance.
3. Equipped with internationally renowned hydraulic solenoid valves for extended service life.
4. Clamping fixtures crafted from alloy steel for exceptional durability.
5. Equipment operates without metal wear, ensuring high recyclability and environmental sustainability.
6. Packaged in plywood crates compliant with international export standards.
7. The innovatively designed cutting panel and pull-out panel enhance operational safety and convenience.
Applications
1. Scrap Motor Recycling Facilities: Suitable for recycling facilities of all sizes, enabling efficient motor disassembly and copper coil recovery to boost recycling efficiency and profitability.
2. Home Appliance/Industrial Motor Dismantling Companies: Processes all types of scrap home appliances and industrial motors through an integrated dismantling process, meeting the demands of large-scale production.
3. Exclusively Tailored for the European Market: Complies with European recycling standards, offering user-friendly operation and high efficiency. Suitable for various motor recycling scenarios in Europe, with high market recognition.
4. Specialized Copper Resource Recovery: Focuses on the recovery of motor copper coils, ensuring precise separation to enhance the purity and added value ofrecovered copper resources.
Waste Motor Wreker Machine Process Step:
1. First, using flat blade to waste motors;
2. Second, using sharp blade to cut used motor stator in half;
3. Third, put half of the motor stator into the fixture, fix it on the panel, and then use hydraulic system of motor wrecker to pull scrap copper out;
4. Finally, take the same process steps for the other half and you will get pure copper in the end.
Operational Considerations
1. Before starting the machine, fill it with hydraulic oil, then start the machine to adjust the pressure. If the pressure gauge shows no pressure, switch the three-phase power supply to single-phase power and restart.
2. Control Panel Instructions:
Using and Maintain
1.Hydraulic oil is 4-48#, oil mass is 85L.
2.Every two weeks need check if claw screw are loose.
3.Every two weeks need check if oil cylinder screw are loose.
4.Every day need fill lubricating oil once in driving position of claw to reduce abrasion.
Transportation
We offer a comprehensive ocean and air freight logistics system to provide you with the most convenient logistics experience andquick response to save your time.
Service & Support
1. Daily update of production progress and logistics information throughout the process.
2. Logistics purchase freight insurance, support damage compensation
3. Online video technical support to ensure correct operation of the machine
4. If the accessories are abnormally damaged within one year, support sending new accessories
5. There are local dealers in Europe and America, supporting local after-sales service.

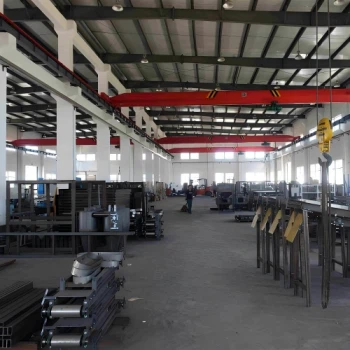

Our Factory
Xi'an RJ Mechanical Equipment Co. Ltd. was established in 2010 and is located in the High-Tech Industria. The company occupies an area of 5,000 square meters,employs 100 staff members and possesses an annual production capacity valued at $30 million USD. The factory specializes in manufacturing industrial machinery including cable granulator machines wire stripping machines radiator recycling machines motor stator recycling machines balers shredders.and alligator cutter machines.
FAQ
Q: : Are you a trading company or manufacturer?
A: We are an experienced manufacturer with a factory covering an area of 5000 square meters.
Q: Can I have my own customized product?
A: Yes.OEM&ODM are available,including design, logo,package etc.
Q: Differences from other brands in China?
A: We are not only selling machines, we pay more attention to after-sales service.We have always believed that the customer's reputation is the best advertisement.We hope to really help our customers use machines and bring growth to their business. You can view our customers' feedback, facts speak louder than words.
