Products Description

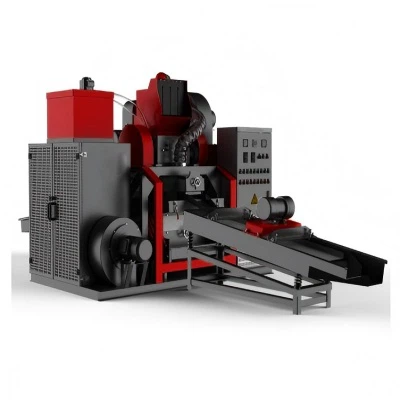

The E-S55 Copper Rice Machine is the core equipment in the field of recycling waste electrical wires and cables. Its primary function is to physically shred and separate mixed waste wires and cables into high-purity copper particles (resembling grains of rice, hence the name "copper rice") and plastic pellets, enabling the regeneration and reuse of resources.
Structure Overview
Machine Parameters
| Power | 120KW |
| Weight | 8500KG |
| Wire Range | 0.1-30MM |
| Measurement | 12*4.3*3M |
| Process Capacity | 1200-1800KG/H |
Separation rate
After undergoing a series of processing steps, these scrap copper cables can be broken down into pure copper granules. Once separated from the plastic pellets, these copper granules are referred to as copper rice and can be put directly into use. With a separation rate as high as 99.9%, this process produces no dust or pollution, making it an outstanding eco-friendly solution.
Processing Cables Types
The E-S55 Copper Wire Shredder is primarily designed for processing scrap electrical wires, such as those from automotive circuits, electric scooters, televisions, washing machines, refrigerators, air conditioners, communication equipment, and computer cables. This is a highly efficient and practical piece of equipment.
Working Principle
Our Factory
Xi'an RJ Mechanical Equipment Co. Ltd. was established in 2010 and is located in the High-Tech Industria. The company occupies an area of 5,000 square meters,employs 100 staff members and possesses an annual production capacity valued at $30 million USD. The factory specializes in manufacturing industrial machinery including cable granulator machines wire stripping machines radiator recycling machines motor stator recycling machines balers shredders.and alligator cutter machines.
Certification
FAQ
Q: Copper-containing rice may contain plastic, or plastic may contain copper. How to address this issue.
A: 1. The air density separator must be installed on a level base. Use a spirit level to check and adjust the equipment legs. 2. Material contamination occurs. Replace the screen mesh with the corresponding aperture based on cable thickness. Common correspondences: 1. Capillary wire/electrical wire: 2.5 mm 2) Recycled automotive wires: 3 mm 3) Network cables: 4 mm 4) Square-section wires: 5.5 mm 3. Imbalanced airflow and vibration parameters: Air volume and vibration frequency of core sorting equipment (gravity separator/air separator) must be coordinated and adjusted.
Q: Machine jamming, failure to discharge material, increased current, and machine body overheating. How to resolve these issues.
A: Excessive or uneven feed rate: Causes the crusher to overload. Immediately stop the machine to clear the blockage and switch to uniform, steady feeding. The equipment's operating current should be maintained at approximately 85% of the rated current.
Q: Abnormal vibration of the machine body; excessive temperature of bearings or casing. How to resolve?
A: 1. Loose fasteners or unstable foundation: Inspect and tighten anchor bolts; install vibration damping devices between equipment and foundation. 2. Rotor imbalance: Blade breakage or foreign objects entering the chamber can cause severe vibration. Shut down the machine for inspection and replace damaged components. 3. Bearing oil shortage, aging, or damage: Lubricate with appropriate oil at the correct time and volume (filling 70%-80% of the space). Replace bearings if severe overheating occurs.
