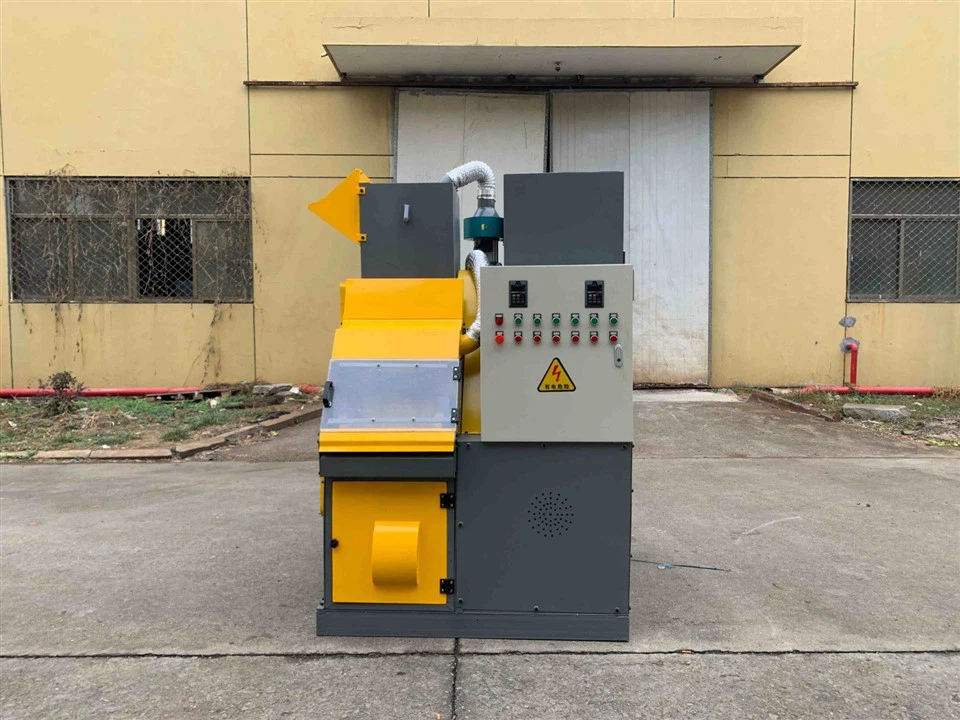

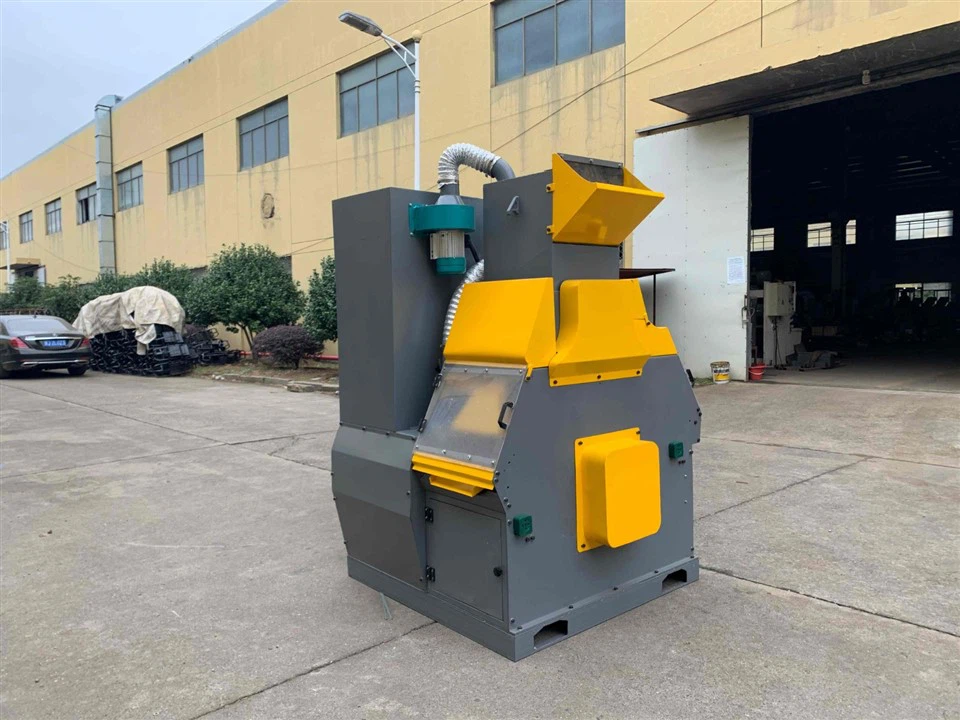

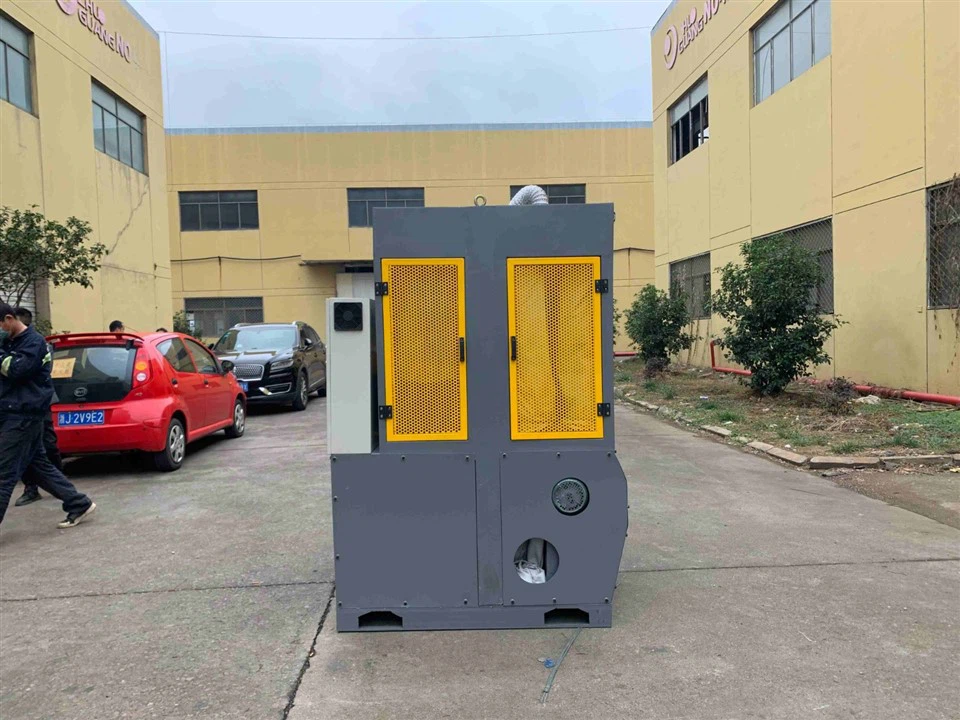

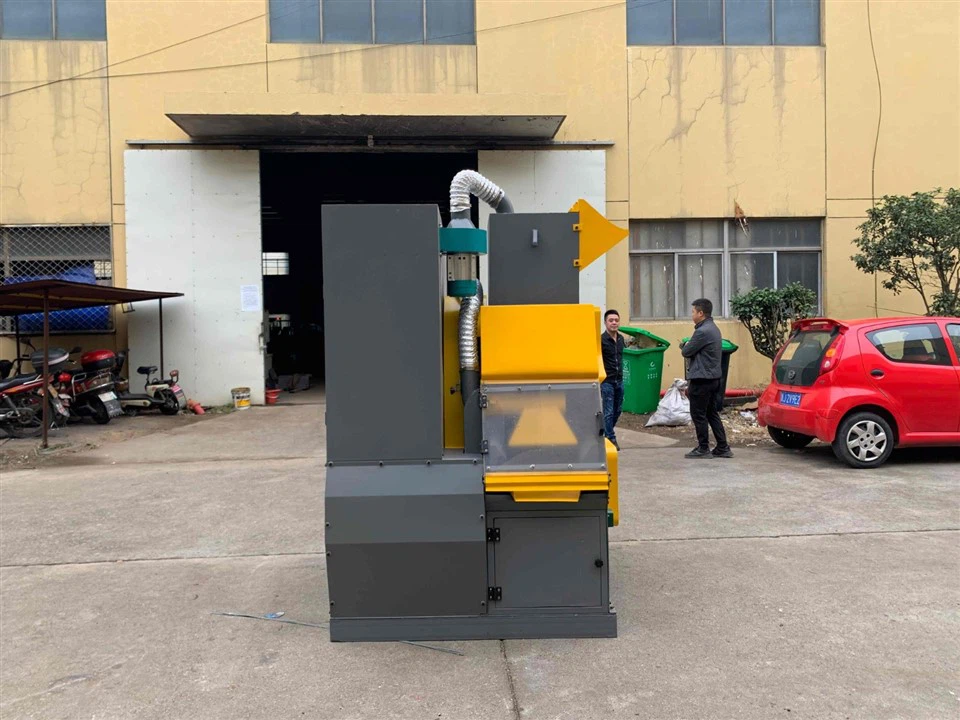

Xi'an RJ Mechanical Equipment Co., Ltd. is one of the leading manufacturers and suppliers of e-s10 copper wire recycling machine in China. Welcome to buy CE approved e-s10 copper wire recycling machine made in China here from our factory. Quality products and reasonable price are available.
Products Description
1. Powerful Crushing: A customized mechanical crushing unit uniformly and thoroughly shreds waste cables, completely separating the copper core from the plastic insulation layer. This prevents material adhesion and residue, laying the foundation for subsequent sorting;
2. Precise Grading: The vibrating screen system precisely classifies materials based on particle size, enabling the orderly diversion of different particle sizes and resolving issues such as fine-particle clogging and uneven separation of coarse particles;

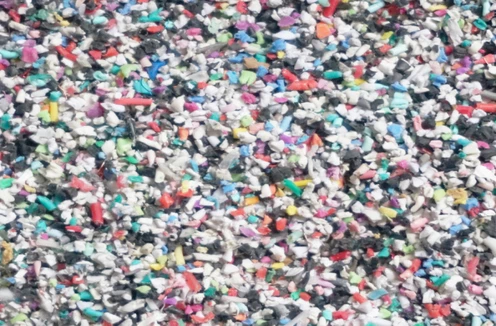

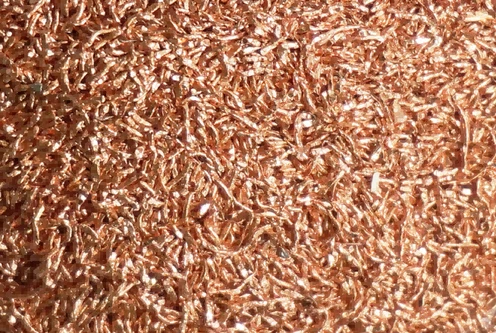

3. Air-Flow Purification: Leveraging the density difference between copper and plastic, the air-flow sorting system achieves high-precision separation, ultimately producing high-purity recycled copper particles and low-impurity recycled plastic particles. Both products directly meet industry standards for recycled raw materials.
Machine Advantages
1.Machine all mostly parts are connected with the control panel which has matched number in every parts.
2.Machine heavy but needn't occupy too much space and installation convenience.
3.Copper separation rate is 99.99%
4.Operation reliable and easier performance.
5.Environmentally Friendly and Pollution-Free: The entire process employs dry physical separation, requiring no water and avoiding combustion. This eliminates air and water pollution issues associated with traditional incineration or acid washing methods.
Machine Parameters
|
Model |
E-S10 |
|
Wire Range |
0.1~30MM |
|
Power |
17.73KW |
|
Output |
100~150KG/H |
|
Net Weight/Gross Weight |
900KG/1200KG |
|
Measurement |
1.45*1.33*2.1M |

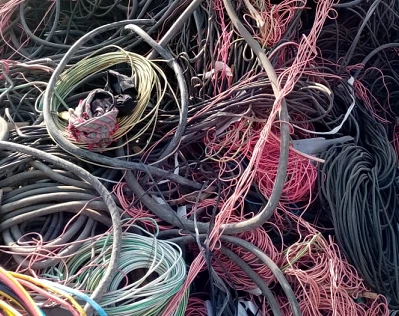

THE RAW MATERIALS CAN BE PROCESSED BY THE MACHINE
SPARE PARTS LIST
CRUSHER SIEVES --- 3 PIECES
(crusher sieves' hole diameter are 3mm/4mm/5mm).
Details: one of install on the machine, rest two are extra.
Quantity: 1-3mm/1-4mm/1-5mm
BLADES --- 1 SET
(fix and rotary blades ).
Materials: SKD-11
Quotation: 10pcs rotary blades + 2pcs fixed blades.
Details: install on the machine.

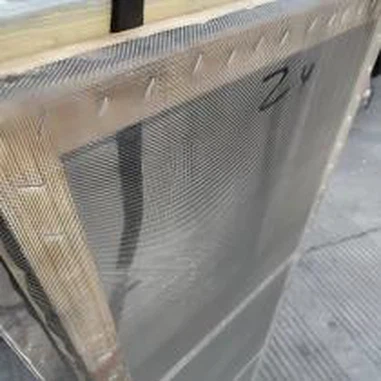

SEPARATOR SIEVES --- 2 PIECES
(Separators' sieves diameters are 200mesh and 250mesh)
Details: 200mesh will install on the machine.
Quantity: 1-200mesh/1-250mesh
(small vibration table's sieves diameters are 16,18 and 14mesh)
Details: The 16 and 18 mesh is used for copper side. The 14 is used for plastic side.
Quantity: 1-16/1-18/1-14

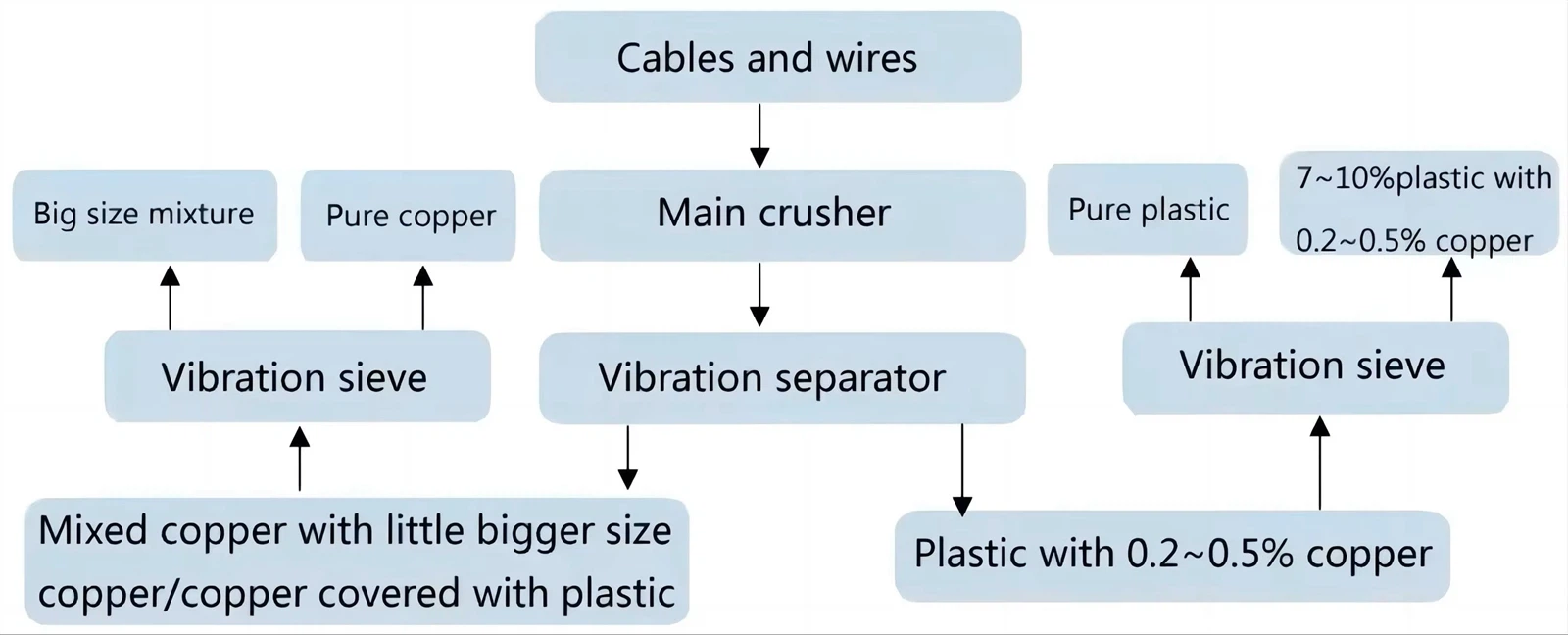

Operational Procedure
Our factory
Xi'an RJ Mechanical Equipment Co. Ltd. was established in 2010 and is located in the High-Tech Industria. The company occupies an area of 5,000 square meters,employs 100 staff members and possesses an annual production capacity valued at $30 million USD. The factory specializes in manufacturing industrial machinery including cable granulator machines wire stripping machines radiator recycling machines motor stator recycling machines balers shredders.and alligator cutter machines.
Certification
FAQ
Q: How can i trust your company?
A: a. With professional design and sales team, we can serve you the perfect solution with lowest cost. b. Assessed by third party, national patents for all equipment, also CE, ISO, TUV. c. Agents in RU, US, UKR, MYS, PH; Users around the world. d. Welcome to inspect anytime.
Q: How about the test running & installation?
A: Before delivery, we finish the test over 3 days. If you take integral design, no need to installation at all. If parted design, we can send our technicians to your place if necessary.
Q: Any warranty?
A: Under the proper usage, one year for whole machine except the wear parts.
