Xi'an RJ Mechanical Equipment Co., Ltd. is one of the leading manufacturers and suppliers of Copper Wire Granulator Machine in China. Welcome to buy CE approved Copper Wire Granulator Machine made in China here from our factory. Quality products and reasonable price are available.
Products Description

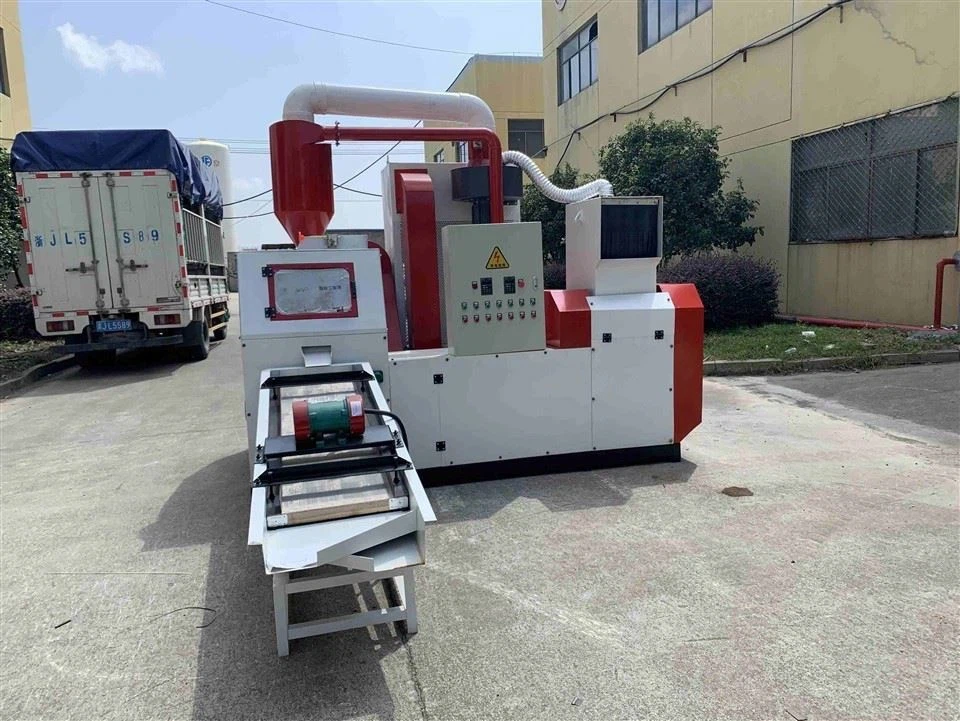

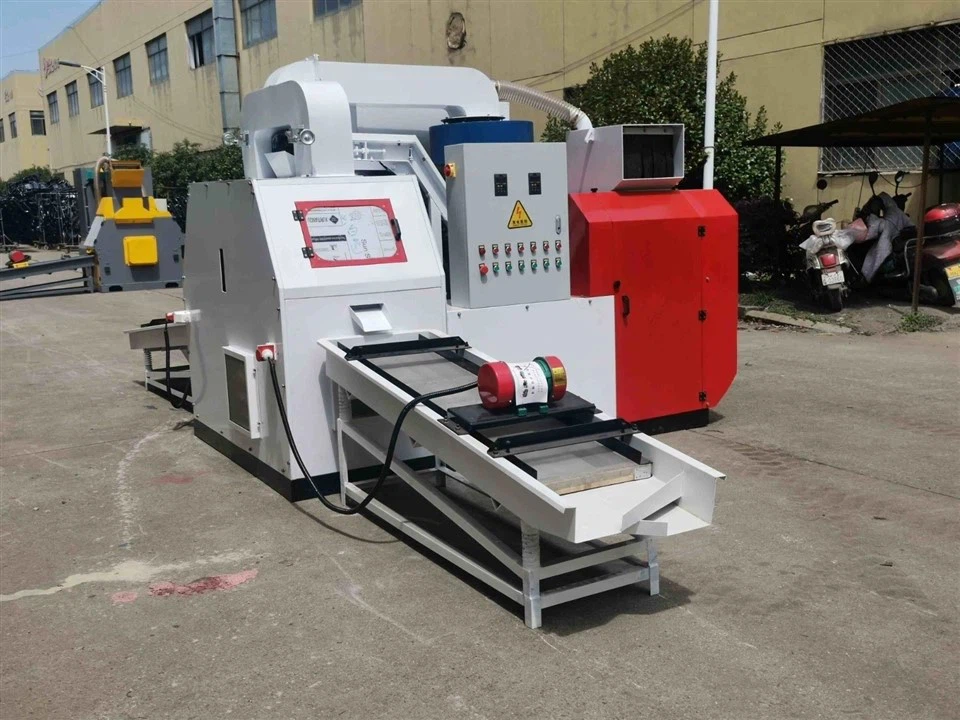

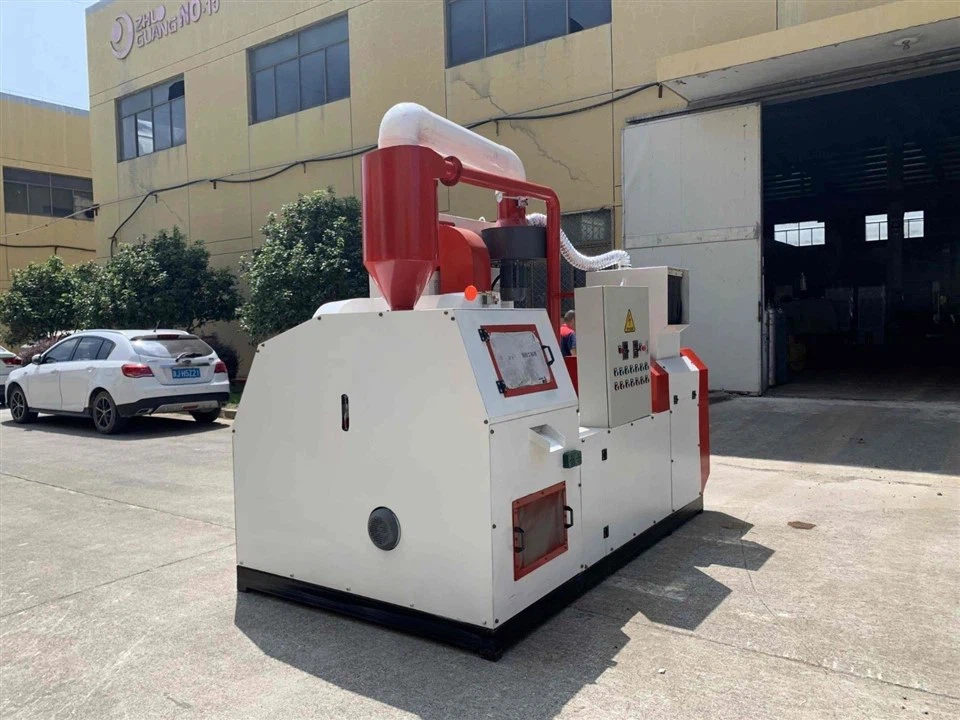

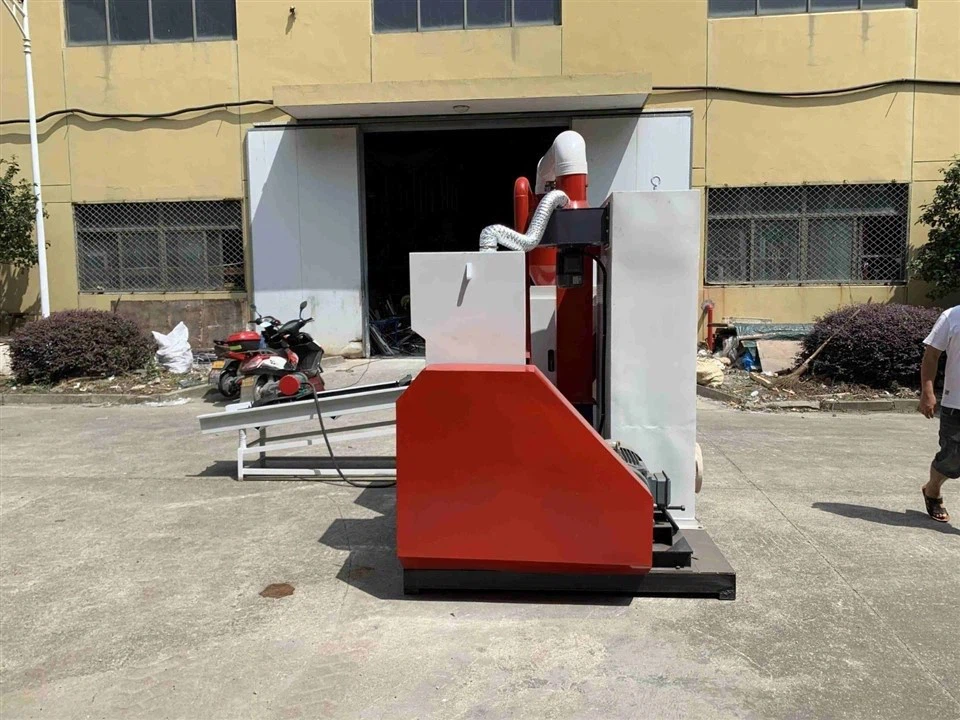

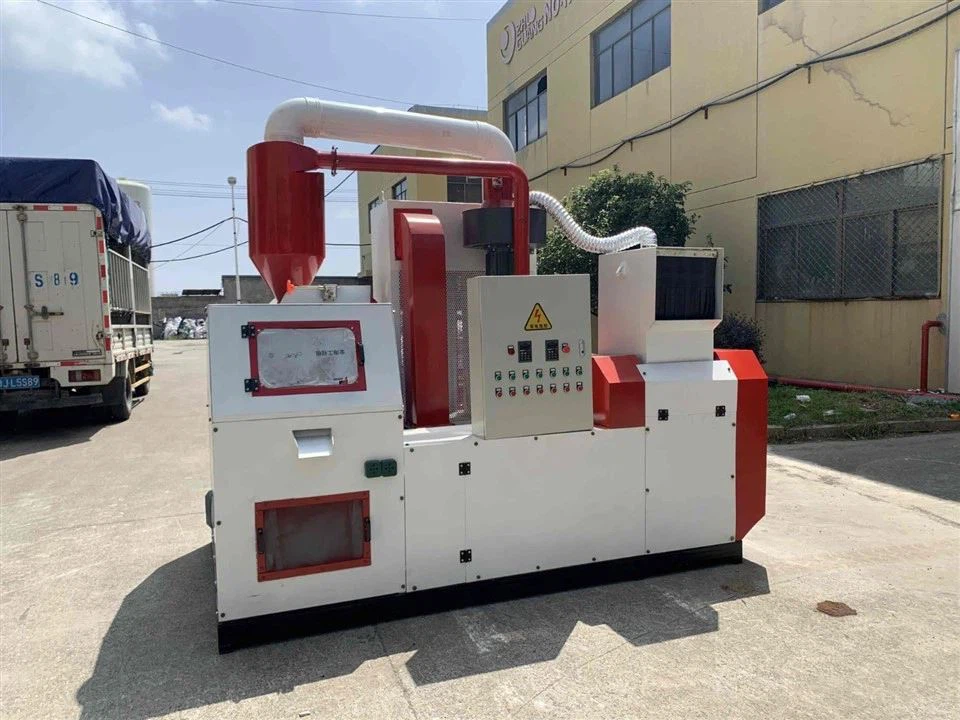

The dry-type medium-sized copper wire pelletizer manufactured by RJ is a new generation of highly efficient and environmentally friendly equipment for recycling scrap cables. It is primarily used to shred scrap wires and automatically separate copper from plastic, producing high-purity copper pellets. As a result, it is commonly referred to in the industry as a copper wire pelletizer, copper wire separator, or scrap wire and cable recycling equipment.
Machine Parameters
|
Model |
E-S20 |
|
Wire Range |
0.1~30MM |
|
Power |
26.75KW |
|
Output |
200~300KG/H |
|
Net Weight |
2400KG |
| Machine Dimensions |
2.7*2*2.1M |

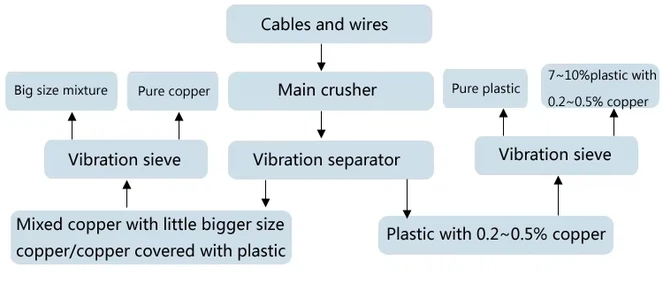

Working Principle
Copper Wire Separating Machine Process
START FOLLOW：
CRUSHER ON → AFTER 15 SECONDS → BLOWER ON → SUCTION ON→ VIBRATOR ON → SHAKING TABLE ON→FEEDING
STOP FOLLOW :
STOP FEEDING → AFTER 60 SECONDS → CRUSHER OFF → AFTER 60 SECONDS→ VIBRATOR OFF → SUCTION OFF →BLOWER OFF→ SHAKING TABLE OFF
Product Advantages
1. High-efficiency capacity: Processes 200–300 kg per hour, ideal for continuous production at small and medium-sized recycling plants. It offers balanced output, lower energy consumption, and a faster return on investment.
2. Ultra-high copper purity: 99.9%–100% high-quality copper granules
Copper and plastic are separated thoroughly with no residue or impurities, resulting in high-quality copper granules that command a higher selling price.
3. Exceptional Versatility: Processes all types of cables with a diameter <30 mm, including household wires, automotive harnesses, communication cables, electronic wires, mixed wires, multi-strand wires, and single-strand hard wires-all scrap cables with a diameter under 30 mm can be processed by a single machine.
4. Dry, Eco-Friendly Process: Pollution-free, no wastewater, low noise. The entire process uses dry physical separation-no water or chemicals required. Dust is controllable, and the process meets European and American environmental standards.
5. Fully Automatic Intelligent Control: One person can complete the entire production process
Single-step feeding → automatic crushing → automatic conveying → automatic dust removal → automatic sorting. With multi-machine coordination, intelligent operation, and continuous stability, only one person is needed for loading, significantly reducing labor costs.
6. Recyclable Plastic: Dual Benefits
The separated plastic is clean and free of impurities, allowing for direct recycling and reuse. This generates both copper revenue and plastic revenue, boosting overall profits.

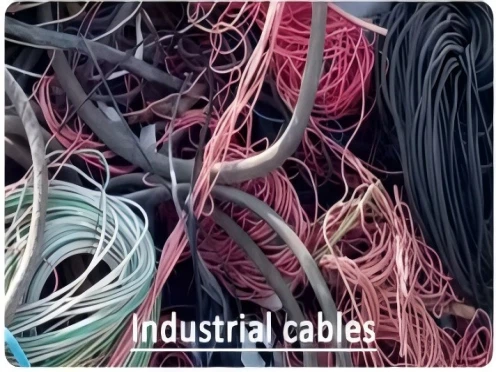

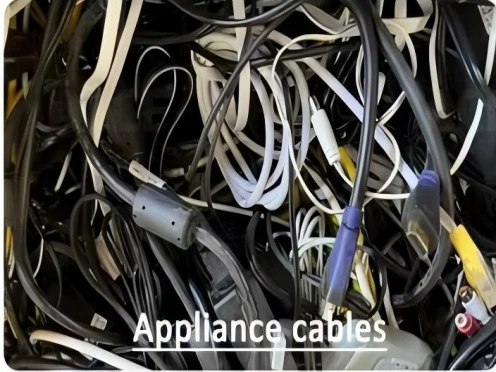

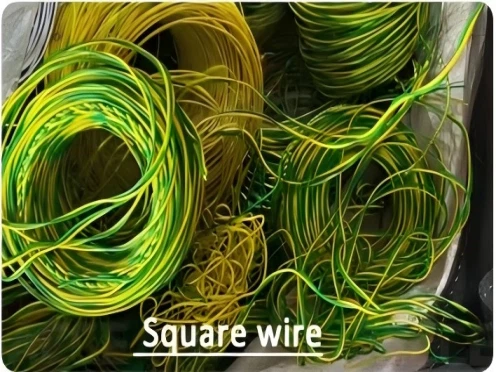

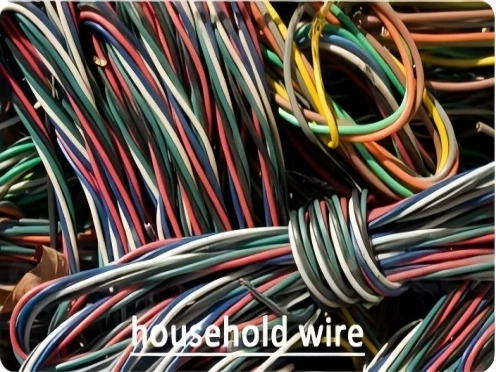

Accepts all types of wire harnesses for recycling
Applications
Copper wire pelletizers are widely used in the global recycling industry:
1. Scrap collection centers / scrap cable recycling centers
2. Auto dismantling facilities and automotive wiring harness recycling
3. Appliance dismantling and electronic waste processing
4. Processing of scrap cables in power and telecommunications projects
5. Metal recycling, copper pellet processing, and plastic recycling companies
Company Profile
Xi'an RJ Mechanical Equipment Co., Ltd. was established in 2010 and is located in the High-Tech Industria. The company occupies an area of 5,000 square meters,employs 100 staff members, and possesses an annual production capacity valued at $30 million USD. The factory specializes in manufacturing industrial machinery including cable granulator machines,wire stripping machines, radiator recycling machines,motor stator recycling machines, balers,shredders.and alligator cutter machines.
Certificate
FAQ
Q: Are you the manufacture?
A: Yes, we are. We have mature product lines. If you want to come and visit, we absolutely welcome and we are willing to arrange the travel for you.
Q: Which machine and model should I choose?
A: You can just send me a picture of the material you want to work with and tell me how much capacity you need. I can recommend suitable machines and cost-effective models for you.
Q: How to ensure the quality of the machine?
A: Each of our machine finished, we will strictly test the machine to make sure it works well. And we can share the video of outgoing inspection and package with you. Our machines have 12 month warranty. Non-human damaged parts within one year will be repaired and replaced for free.
Q: How to install and maintain the machine?
A: We can supply the installation video, operation instruction, and maintenance manual. And we can arrange online video chat to help you.
